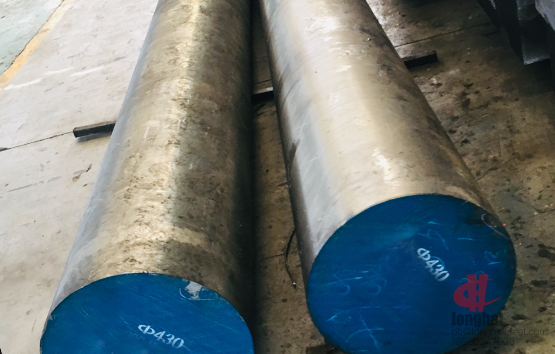

SKD11,D2,1.2379,X153CrMo12熱鍛圓鋼
產品參數
- 冶煉方式: EAF+LF+VD+ESR
- 執行標準: SAE 、ASTM 、DIN 、JIS 、EN 、
- 產品尺寸: Customize
- 交貨狀態: 鍛造 、調質 、
- 表面狀態: 銑削 、
- 庫存狀態: 訂貨
產品詳情
SKD11(D2, 1.2379, X153CrMo12) Cold Work Tool Steel is a high carbon, high chromium tool steel (12% chrome) with extremely high wear resisting properties, heat treatable to 60-62 Rc. SKD11(D2, 1.2379, X153CrMo12) Cold Work Tool Steel is very wear resistant but not as tough as lower alloyed steels. SKD11(D2, 1.2379, X153CrMo12) Cold Work Tool Steel hardens in air with a low order of movement and offers a measure of corrosion resistance when polished. The high percentage of chromium gives it mild corrosion-resisting properties in the hardened condition. The mechanical properties of SKD11(D2, 1.2379, X153CrMo12) Cold Work Tool Steel are very sensitive to heat treatment. SKD11(D2, 1.2379, X153CrMo12) Cold Work Tool Steel is available in de-carb free rounds, flats, and squares, as well as ground flat stock and drill rod.
| USA | German | Japan |
| ASTM A681 | DIN EN ISO 4957 | JIS G4404 |
| D2 | 1.2379/X153CrMo12 | SKD11 |
SKD11(D2, 1.2379, X153CrMo12) Cold Work Tool Steel Mechanical Properties
| Mechanical Properties | Metric | Imperial |
| Hardness, Knoop (converted from Rockwell C hardness) | 769 | 769 |
| Hardness, Rockwell C | 62 | 62 |
| Hardness, Vickers | 748 | 748 |
| Izod impact unnotched | 77.0 J | 56.8 ft-lb |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elastic modulus | 190-210 GPa | 27557-30457 ksi |
