SKD61化學成分 - JIS G4404 - (2006)

C	Si	Mn	P	S	Cr	Mo	V
0.35-0.42	0.80-1.20	0.25-0.50	≤0.030	≤0.020	4.80-5.50	1.00-1.50	0.80-1.15

---

SKD61標準規范

• JIS G4404 - (2006) - Alloy tool steel

---

SKD61機械性能

It is a type of alloy tool steel, and tungsten, molybdenum, chromium, vanadium, etc. are added to carbon tool steel. SKD61 has heat resistance and heat shock resistance and is widely used for hot molds.SKD61 is a high chromium alloy tool steel with high hardness and wear resistance after heat treatment and hardenability. It has good dimensional stability and hot hardness. it is suitable for producing high precision long life hot work die mould.

---

SKD61庫存信息

鋼號	規格mm	重量kg
1.2344ESR	Dia 81mm,Length: 2.5-5.8m	850
1.2344ESR	Dia 91mm,Length: 2.5-5.8m	1000
1.2344ESR	Dia 102mm,Length: 3400mm	460
1.2344ESR	Dia 102mm,Length: 3350mm	230
1.2344ESR	Dia 162mm,Length: 4835mm	800
PH13-8Mo	128*270*601mm	160

---

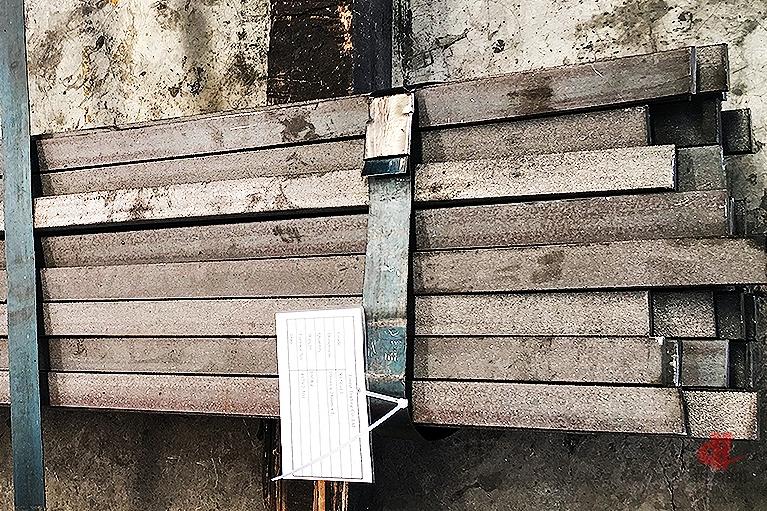

SKD61產品形態

• 熱軋和冷拉棒材, 圓棒, 扁鋼, 六角棒, 八角棒, 空心棒
• 帶鋼和鋼卷, 熱軋帶鋼, 熱軋鋼卷, 冷軋鋼帶, 冷軋鋼卷
• 冷軋板材, 熱軋板, 冷軋薄板, 中厚板, 高強鋼板
• 熱軋和冷拉異型鋼, 凹凸字鋼, 滑軌, 滑塊
• 熱軋和冷拉鋼絲, 扁絲, 盤條, 直條
• 自由鍛和模鍛, 扁鋼, 模塊, 環, 桶, 餅, 階梯軸及定制化
• 熱擠壓和冷軋無縫管, 異型管, 方管, 毛細管
• 電渣錠

---
